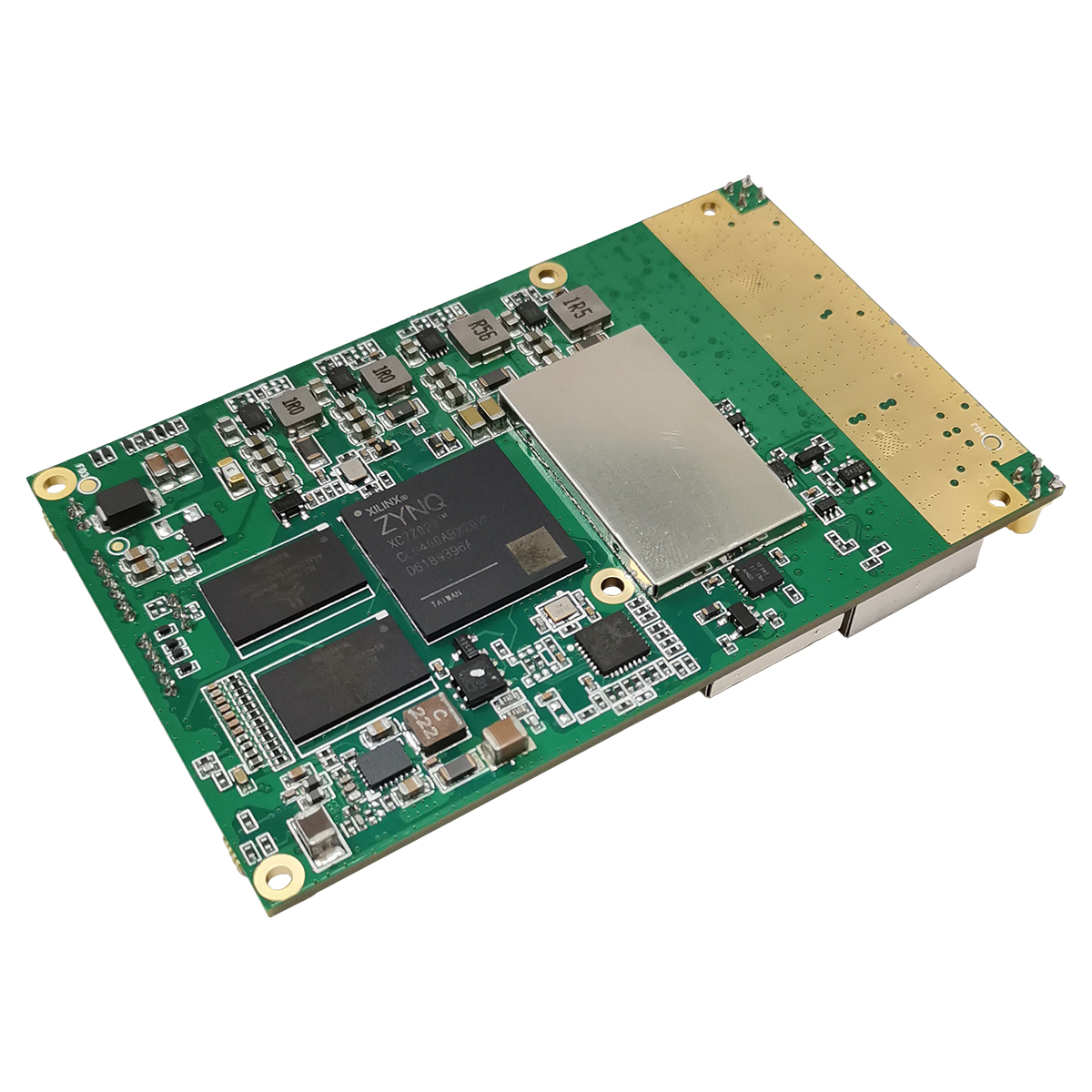

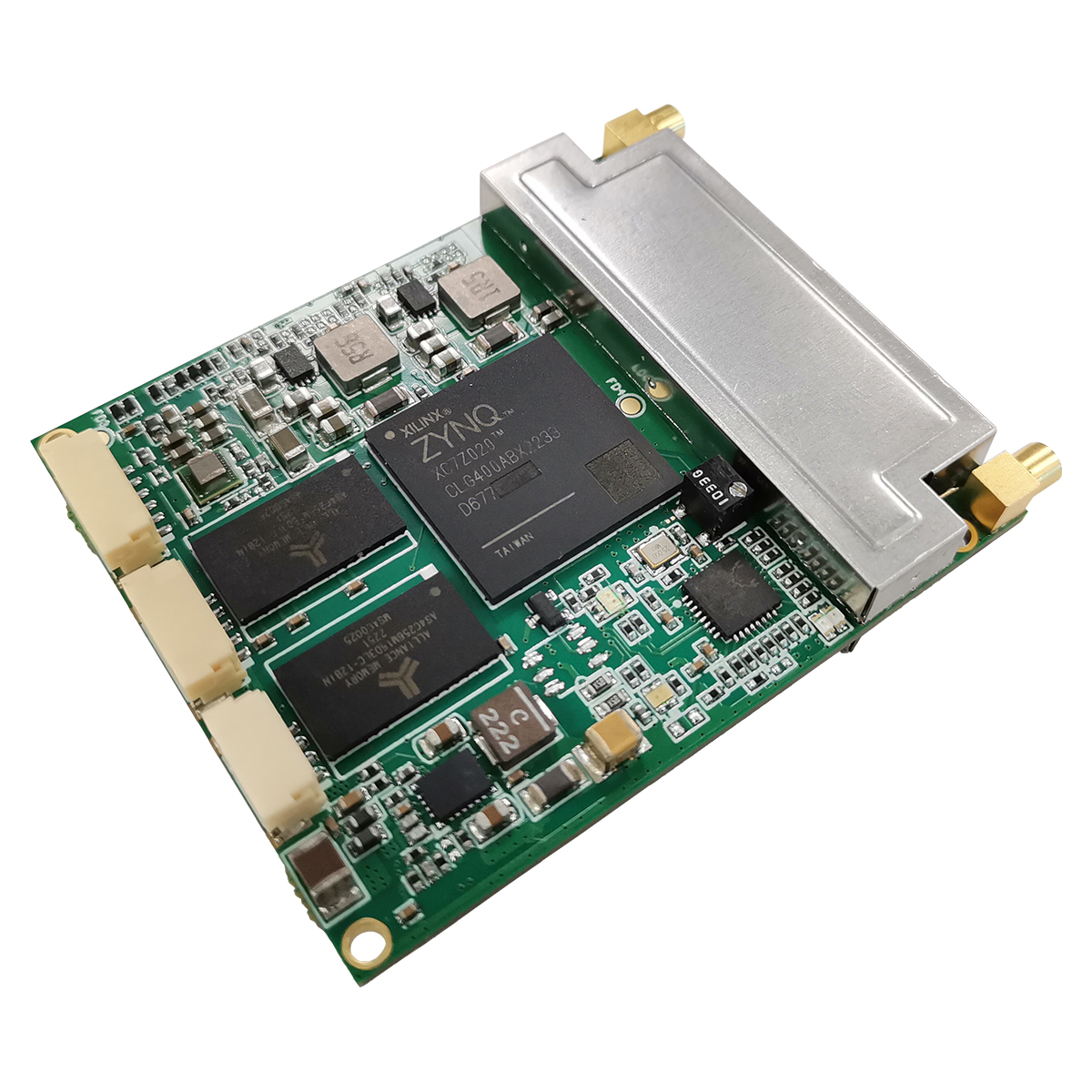

Wireless Digital Data Link Series of OEM Module
|
General |
||||
|
Waveform/SDR Platform |
Mobile Network MANET/9363 or 9361+7Z020 |
|||
|
MIMO Technology |
Space-time coding、Receive Diversity、TX /RX beamforming |
|||
|
Receive Sensitivity |
-103dBm@5MHz BW |
|||
|
Channel Bandwidth |
1.25/2.5/5/10/20MHz setting |
|||
|
Data Rate |
1-70Mbps(10MHz BW) Adaptive, QoS |
|||
|
Modulation Mode |
TD-COFDM, BPSK/QPSK/16QAM/64QAM Adaptive(Fixed setting optional) |
|||
|
RF Output Power (Support TPC, transmisson power control) |
0.5Watts x2 1Watts x2 2Watts x2 |
|||
|
Single Hop Communication Distance |
Air to G. 10-30KM(0.5Watts x2)、20~50/50~150KM(1Watts x2/2Watts x2) |
|||
|
Mode |
Distributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint, Layer 2 or 3 of Dynamic routing、Multi-hop relay, Star/Line/Network/Hybrid |
|||
|
Single Hop Delay |
Average 7mS (20MHz BW) |
|||
|
Encryption |
DES, AES128/256, SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine |
|||
|
Anti-jamming Mode |
Manual spectrum scanning channel selection, Full band enhanced intelligent frequency selectting(spectrum awareness)/Full band adaptive frequency hopping/Roaming mode optional |
|||
|
Local/Remote Management |
Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic,node distance, GPS/Beidou electronic map, temperature/voltage/jamming Monitoring, software upgrade. Remote silence and wake-up optional |
|||
|
Others |
The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second. There is no limit on the user capacity of a single system (256 nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops). The total bandwidth loss for three hops and above is less than 70%. Automatic carrier tracking, adapted to a Doppler frequency deviation of ± 6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second). |
|||
|
Bands(70M-6GHz. 2T2R at single band, or 1T2R at dual band selectable/smart change*) |
||||
|
BAND |
Frequency range (MHz) |
BAND |
Frequency range (GHz) |
|
|
UHF |
430-550/570-700/800-950, 225-400/320-470* |
S Band |
2.0-2.2/2.2-2.5/2.5-2.7/2.7-2.9, 1.6-2.3/1.9-2.7* |
|
|
L Band |
1000-1200/1300-1500/1600-1800/1800-2000, 1200-1700* |
C Band |
4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0* |
|
|
MIIT |
336-344/512-582/566-626/606-678/1420-1520/1430-1444 |
|||
|
Environmental |
||||
|
Operation Temperature |
-40℃ ~+80℃ |
|||
|
Protection Level |
IP66, IP67/IP68 Customized |
|||
|
Mechanical |
||||
|
Size/Weight |

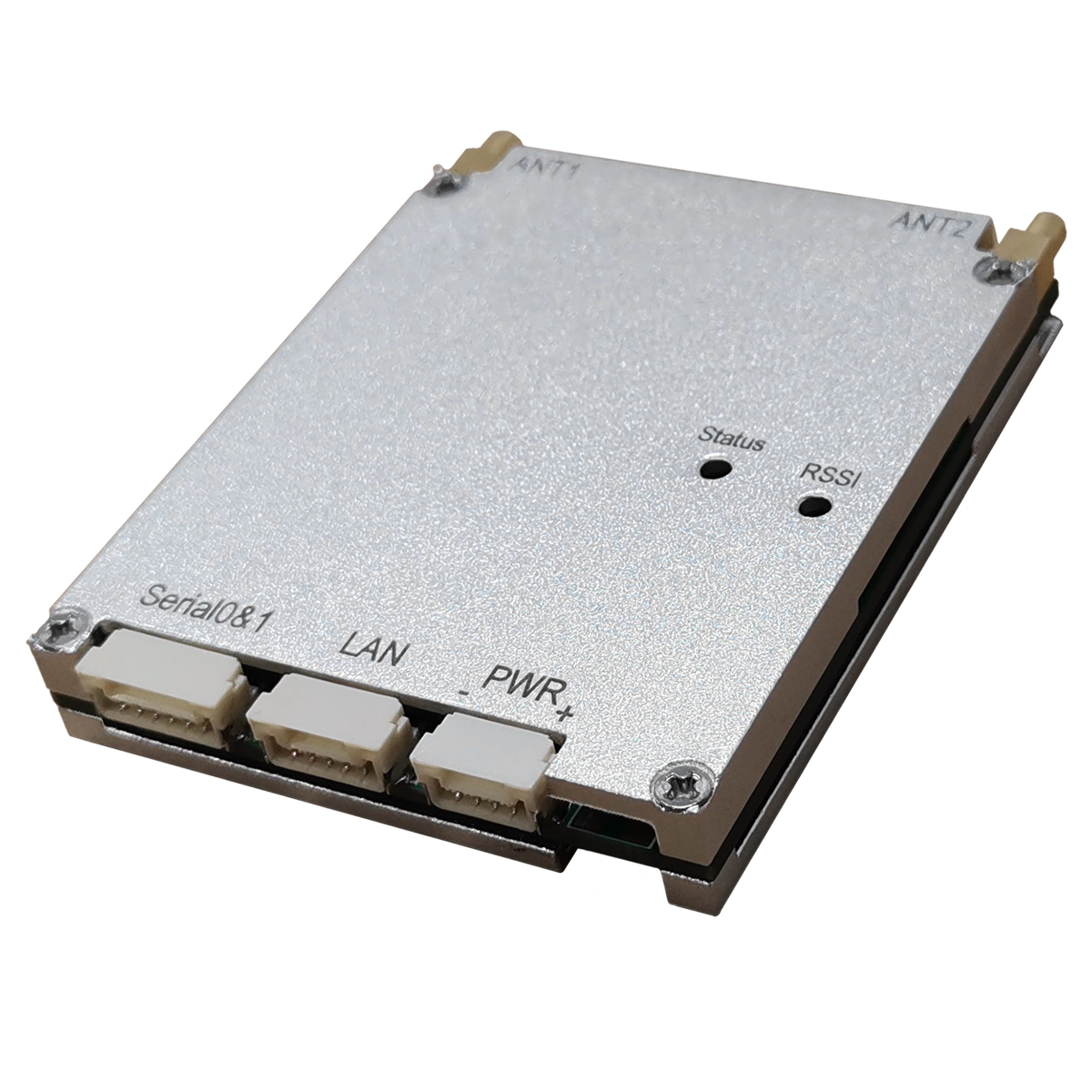

8.7×5.4×1.0cm/40g (1Watts×2 Module) 9.7×5.4×1.0cm/60g (2Watts×2 Module) 6.2x4.8x1.0cm/50 (Mainboard 25)g (0.5Watts×2 Module, SM-mini) |
|||
|
Color |
Black、Lron Gray、Army Green Optional |
|||
|
Installation |
4 Mounting Holes |
|||
|
Power |
||||
|
Supply Voltage |
9-32VDC (0.5Watts×2) 9-39VDC (1Watts×2) 12-36VDC (2Watts×2) |
|||
|
Power consumption |
Operation 0.3-0.5A/Standby 0.2-0.3A@12V(0.5Watts×2) Operation 0.5-1A/Standby 0.4-0.6A@12V (1Watts×2) Operation 1-2A/Standby 0.5-0.7A@12V (2Watts×2) |
|||
|
Power Selection |
Power Supply by Twist-Lock Battery or Main Cable |
|||
|
Interface |
||||
|
Basic interface |

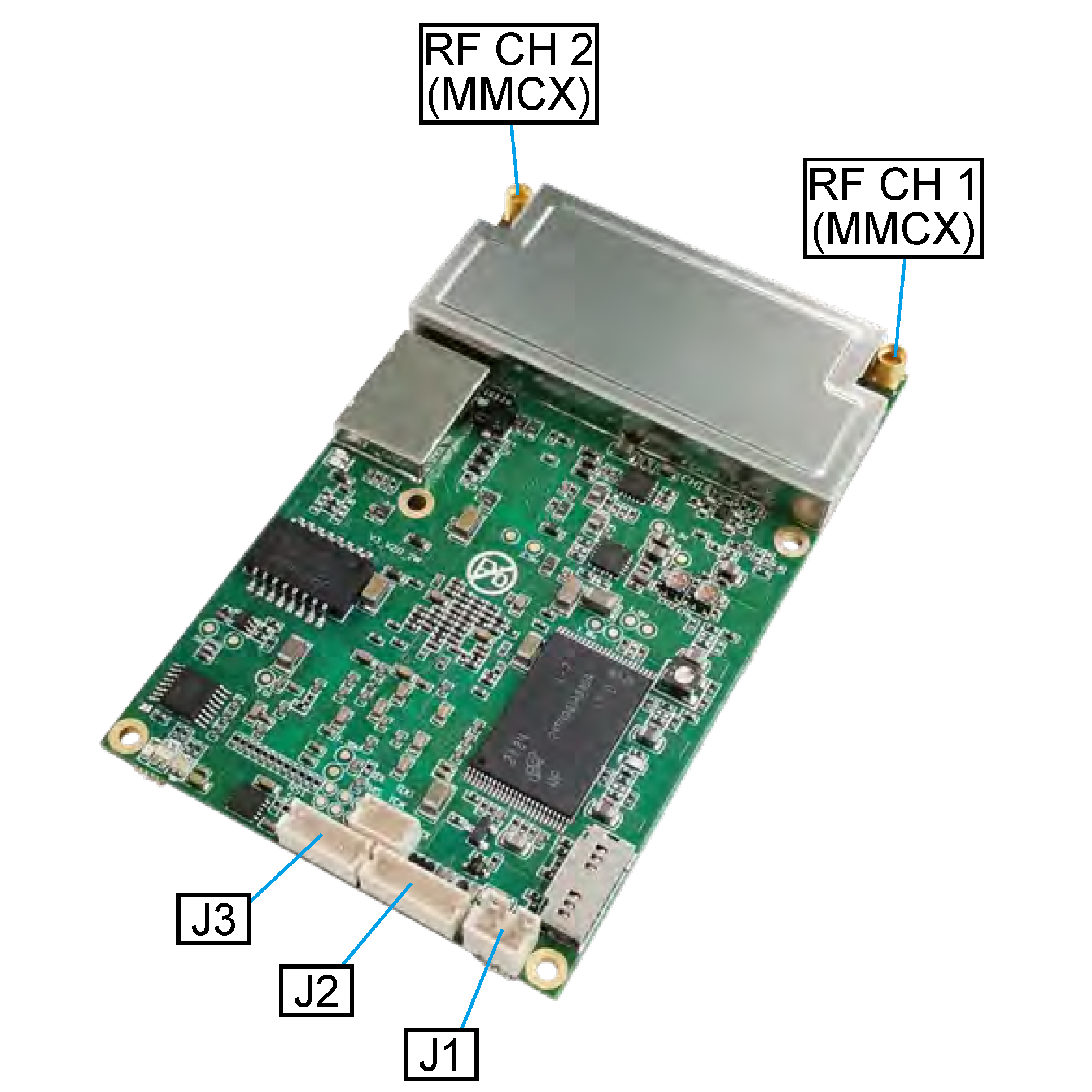

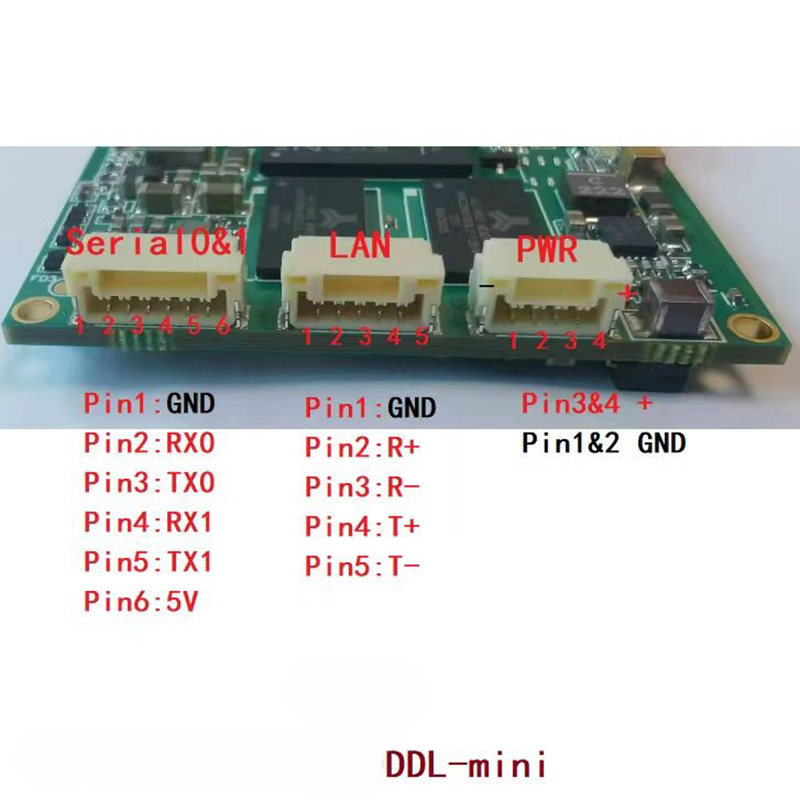

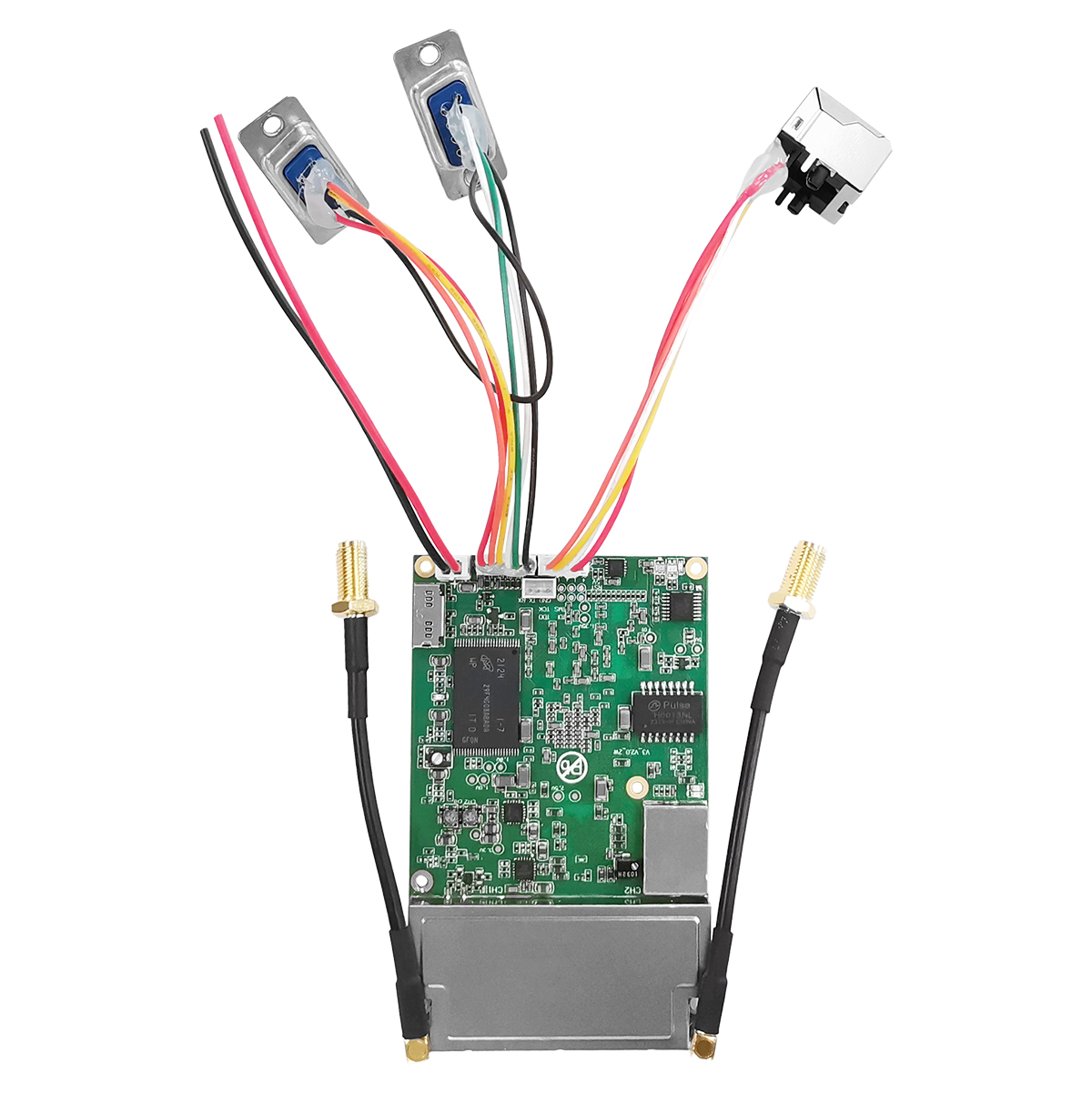

RF: MMCX×2 (2×TRx), J1 (DC input), J4 (Ethernet business, data channel), J7 (serial port 0, serial port 1 RS-232 level), external power amplifier control line |
|||
|
Push to talk/Auxiliary interface |
MIC, SP, PTT, GND, RS485/422, USB2.0 OTG |
|||
|
Network Extension Optional |
Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite |
|||
|
Video Extension Optional |
Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 |
|||
|
Link Status Indicator |

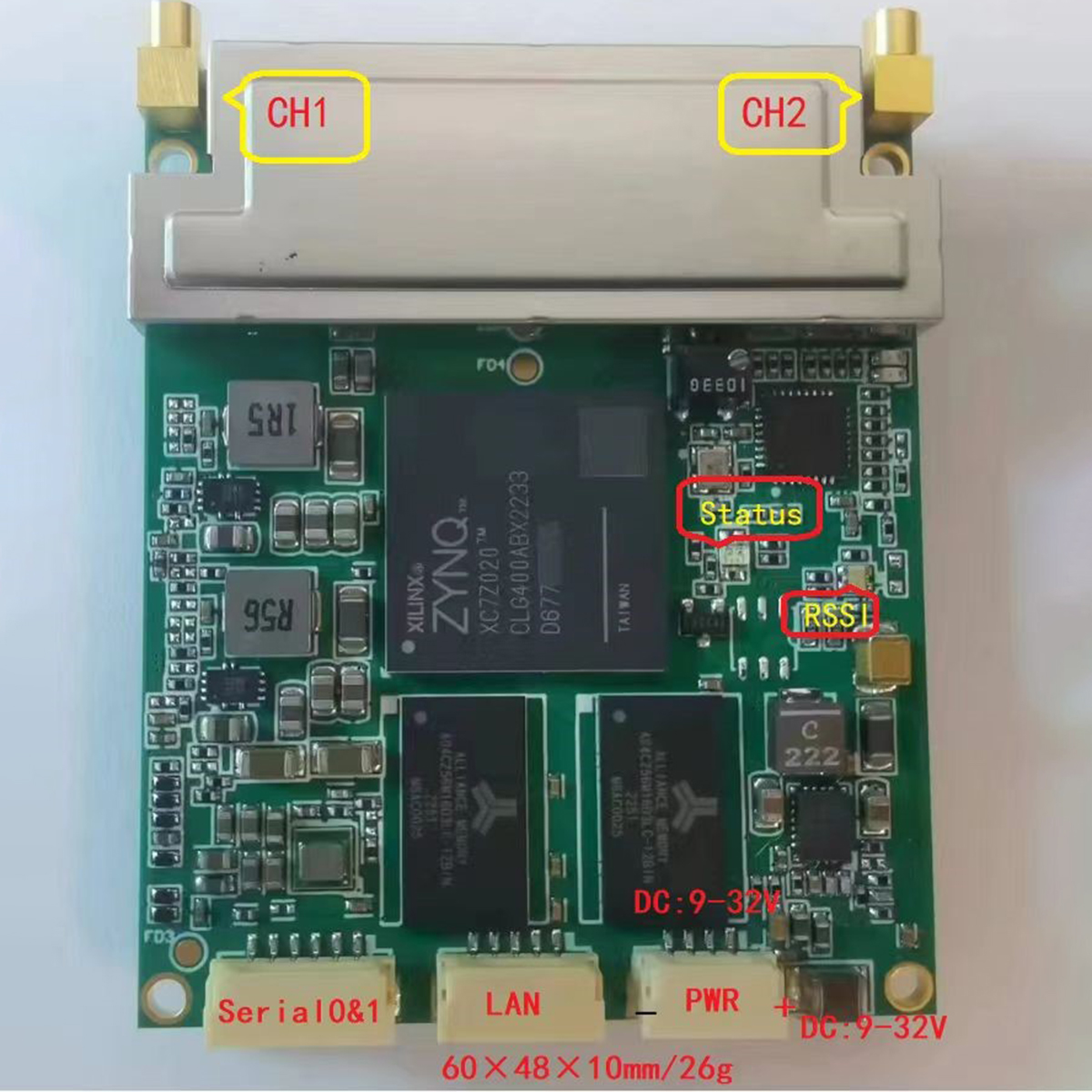

Steady red - The network is not connected Blinking red - Starting/not connected to the network Steady green - The network is connected Blinking green - Voice PTT is down |
|||
|
RSSI Link Indicator |
Steady green - The link quality is excellent Steady Blue - The link quality is good Steady yellow - The link quality is medium Steady purple - The link quality is slightly worse Steady red - The link quality is poor or link is down |
|||
|
Management Interface/Control Interface |
Web-based network management/GUI, API for secondary development interface/SNMP |
|||
