SMARTmesh Series of OEM-Advanced Connectivity Solutions
RF performance:
- Long distance, high throughput, Low delay
- Anti-Jamming COFDM / broadband carrier frequency hopping can improve link quality in complex RF environment
- Excellent multipath and NLOS performance
- Adaptive radio modulation from QPSK to 64QAM is continuously optimized per packet to optimize link performance in dynamic environments
- Software defines channel sizes for efficient reuse of spectrum
- The software defines the operating frequency of the global application
- Convolution coding, forward error correction (FEC), ACK retransmission, maximum ratio merge, spatial multiplexing, and space-time block coding are used for robust data transmission over noise spectrum
- Time Division Duplex (TDD) for Bidirectional Transmission
Network performance:
- Self-organizing, self-healing mobile Mesh networks, multi-hop routing, dynamic topology
- Ultra-Reliable Low Delay Channel for Command and Control (URLLC)
- Optimizing video streaming media channels on the same wireless link
- End-to-end IP architecture for unicast and multicast traffic
- Data transmitted over the air can be encrypted with up to 256-bit AES
- Ake advantage of the most advanced and scalable SDR Communication platform
- Embedded network management APIs
Other:
- Small Size, Light Weight, and Low Power-Low Cost (SWAP-C) for Mobile Device Applications
- Ethernet and UART interfaces can be easily integrated into different system architectures
- Rugged earthquake-resistant construction, industrial temperature range

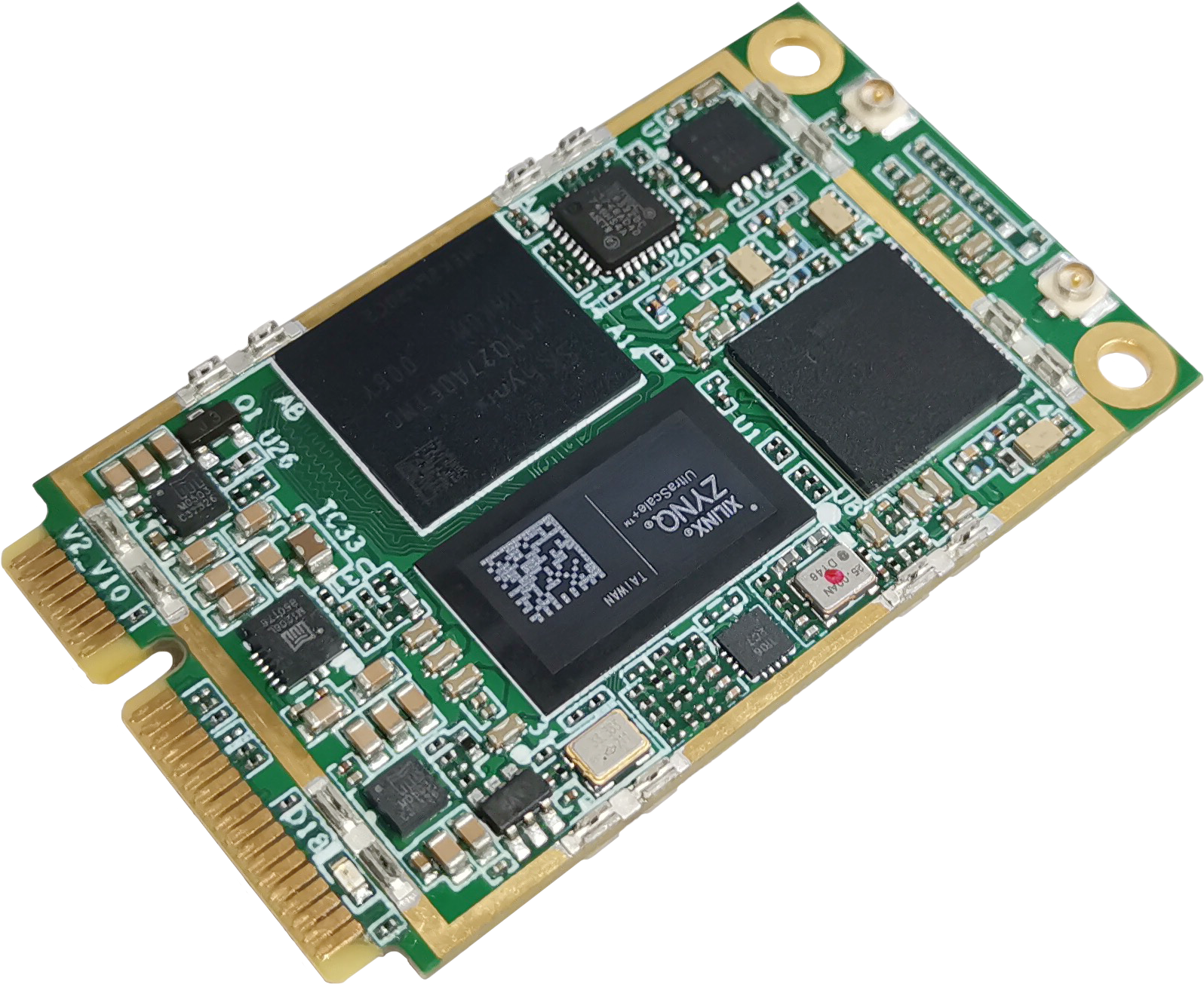

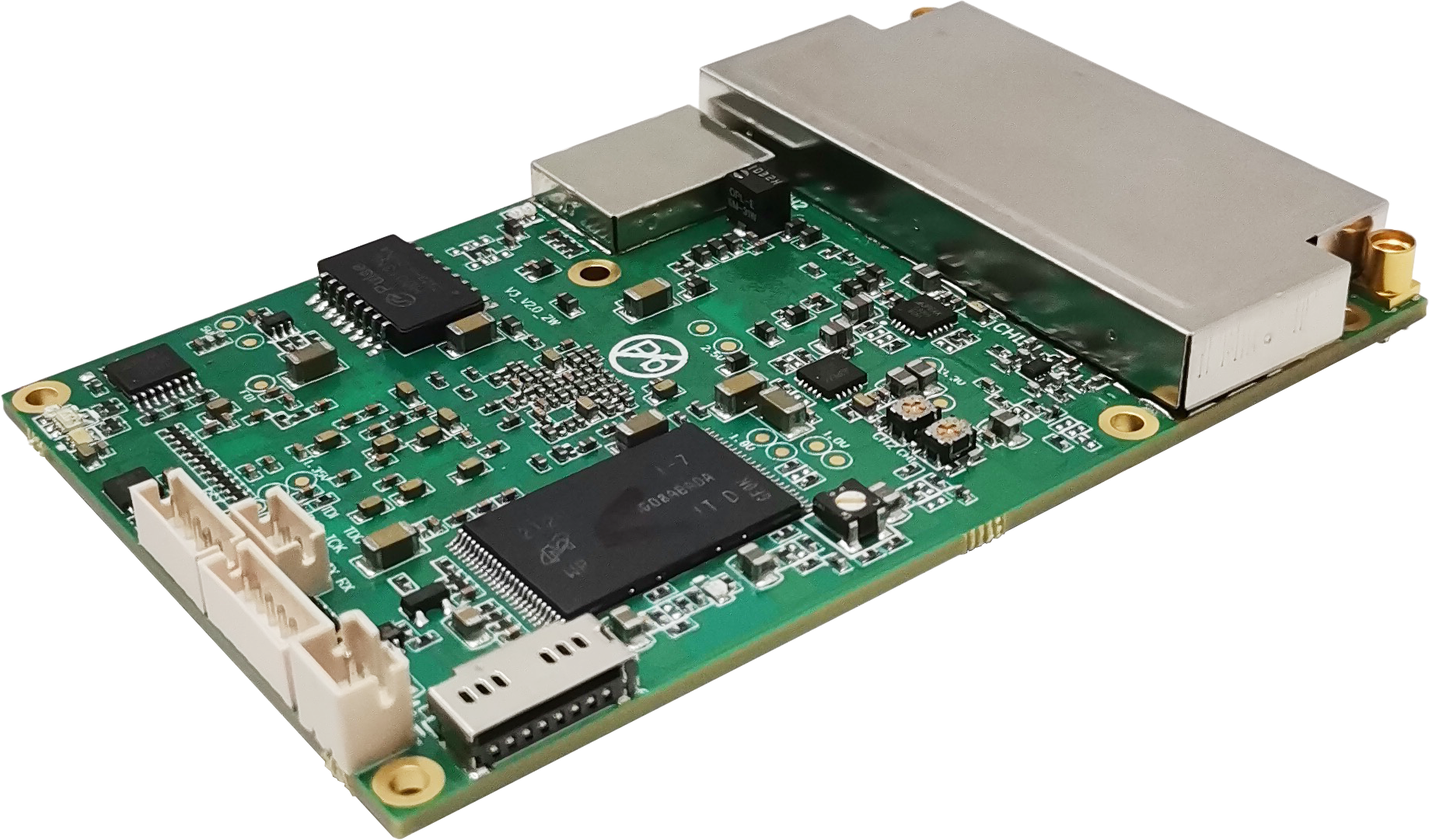

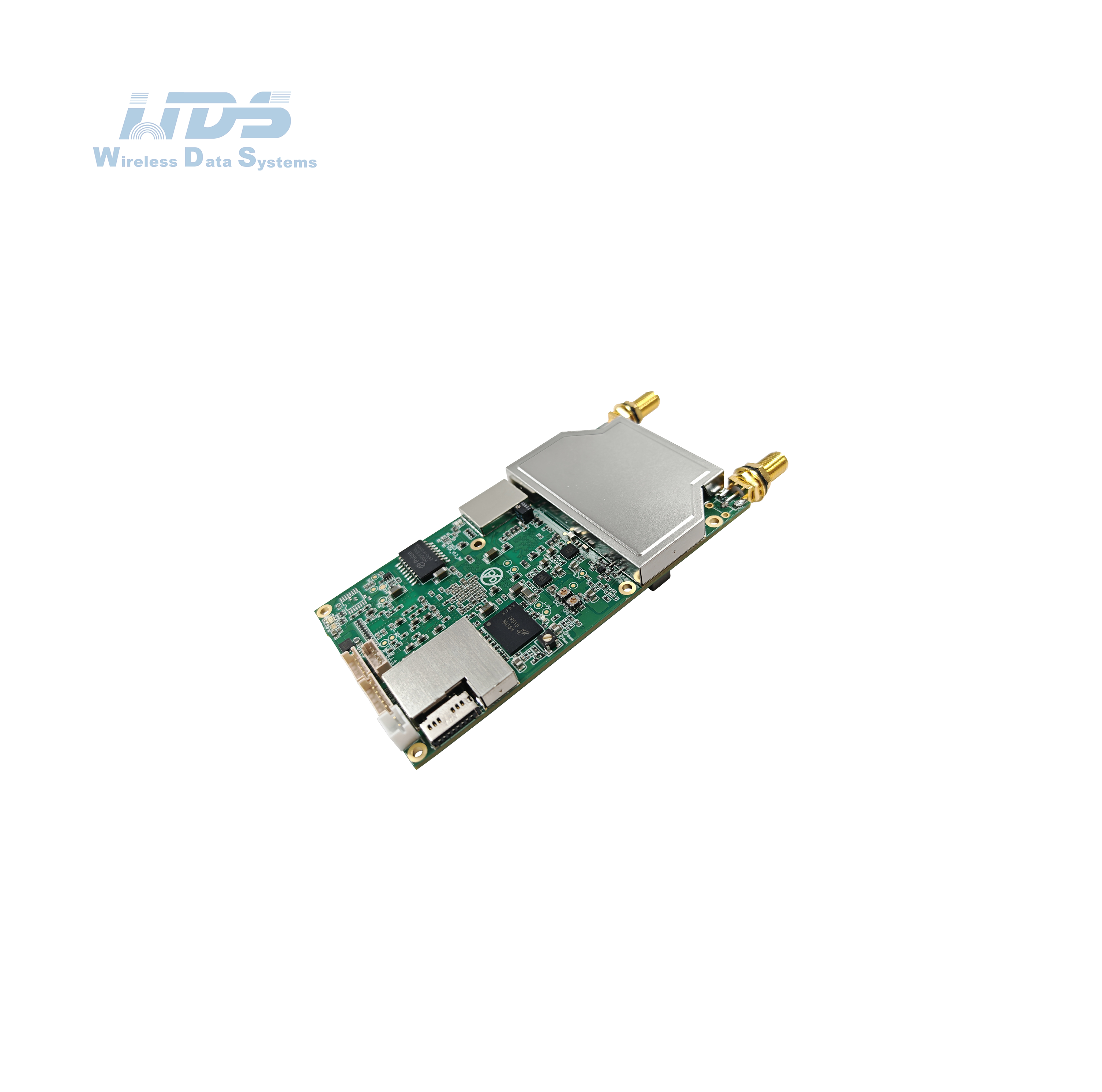

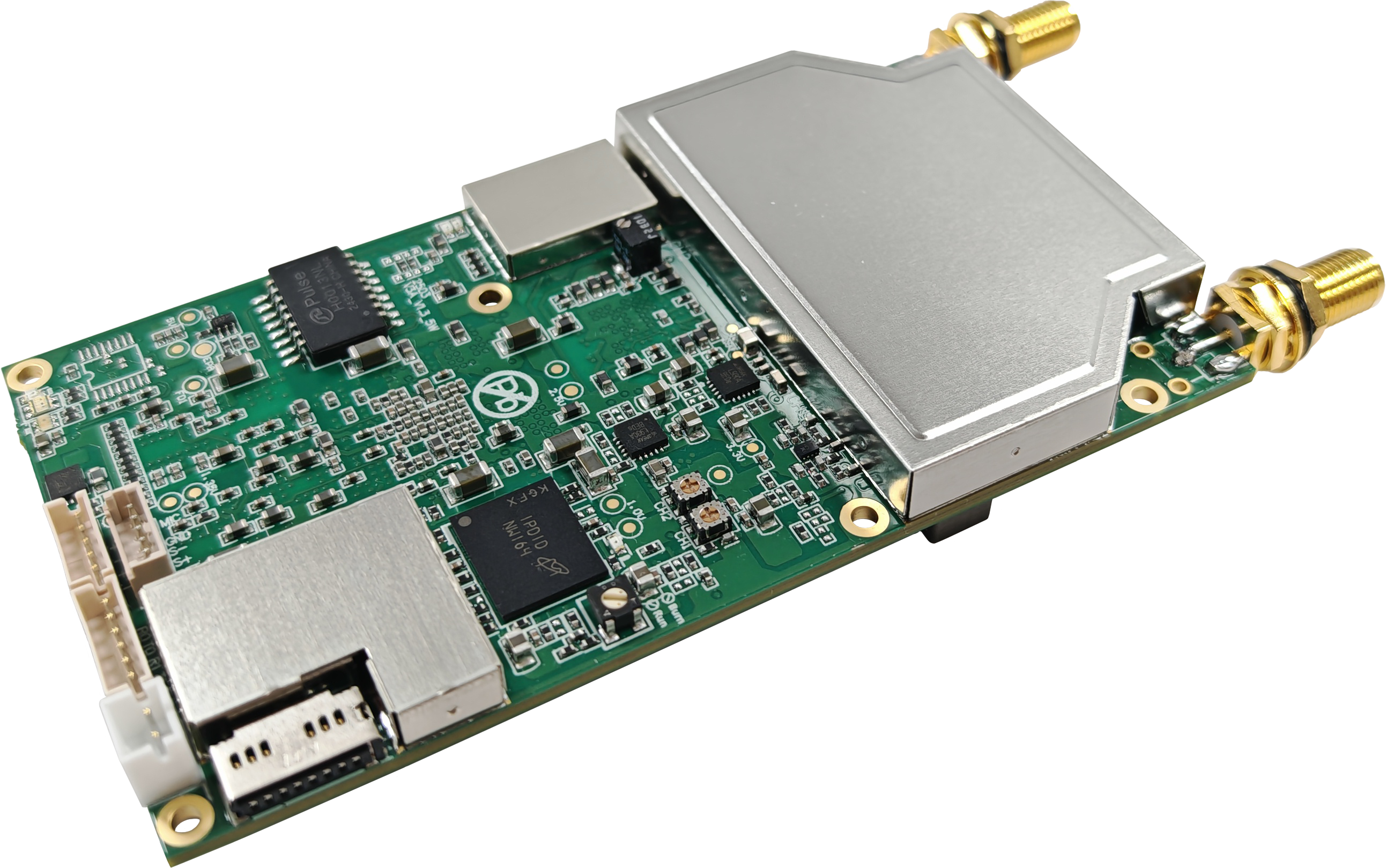

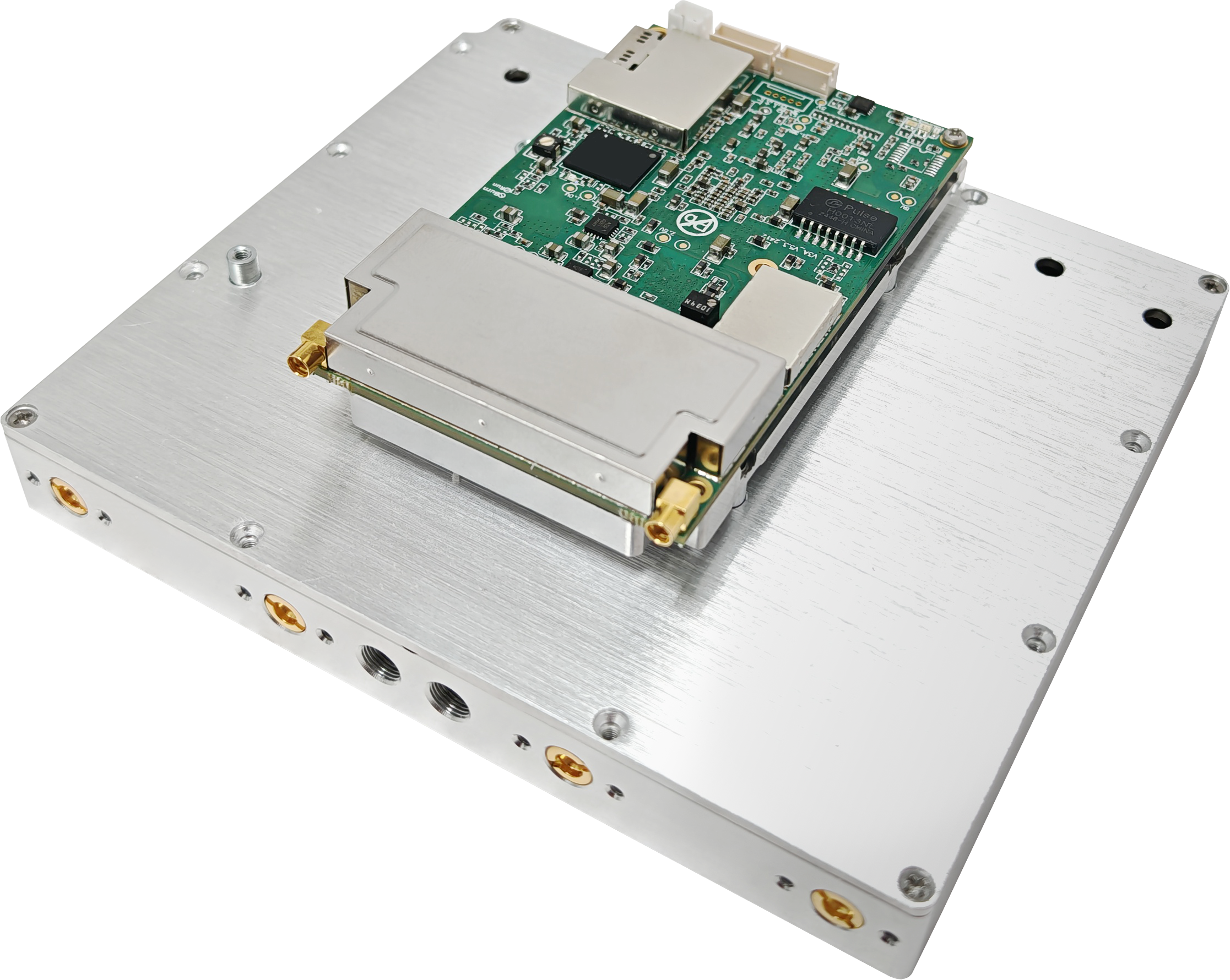

0.25W×2, SM-pico 0.5W×2, SM-mini 1W×2 2W×2 4W×2/5W×2
OEM Specifications
|
General |
|
|
SDR Platform, Waveform |
9361+7Z030/7Z035 or 7Z100, Mobile network MANET+MIMO |
|
MIMO Technology |
Space-time coding、Receive Diversity、TX /RX beamforming |
|
Receive Sensitivity |
-103dBm@5MHz BW |
|
Channel Bandwidth |
1.25/2.5/5/10/20MHz setting; Supports transmission and reception with different channel bandwidths, achieving mixed broadband and narrowband |
|
Data Rate |
1-70Mbps(20MHz BW) Adaptive, QoS |
|
Modulation Mode |
TD-COFDM, BPSK/QPSK/16QAM/64QAM Adaptive(Fixed setting optional) |
|
RF Output Power (Support TPC, transmission power control, 1dBm adjustable) |
0.25Watts×2 0.5Watts×2 1Watts×2 2Watts×2 4Watts×2 5Watts×2 |
|
Single Hop Communication Distance |
Air to G. 3-15KM(0.25Watts×2)、10-30KM(0.5Watts×2)、20~50KM(1Watts×2/2Watts×2)、50~150KM(4Watts×2/5Watts×2) |
|
Mode |
Distributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint,Layer 2 or 3 of Dynamic routing、Multi-hop relay, Star/Line/Network/Hybrid |
|
Single Hop Delay |
Average 10mS (20MHz BW) |
|
Encryption |
DES, AES128/256, SM4, SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine |
|
Anti-Jamming Mode |
Manual spectrum scanning channel selection/Full band enhanced intelligent frequency selecting(spectrum awareness)/Full band adaptive frequency hopping FHSS/Roaming mode, Multi-level anti-interference |
|
Local/Remote Management |
Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic, node distance, GPS/BD/GLONASS positioning electronic map, temperature/voltage/jamming Monitoring, software upgrade. Remote silence and wake-up optional |
|
Others |
The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second There is no limit on the user capacity of a single system (256 nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops). The total bandwidth loss for three hops and above is less than 70%. Automatic carrier tracking, adapted to a Doppler frequency deviation of ±6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second) |
|
Bands(300M-6GHz/Ku-Ka customizable. Same frequency or different frequency of TDD, 2T2R at single band) |
|
|
BAND |
Frequency range |
|
UHF (MHz) |
360-450/450-550/570-700/800-950, 225-400/320-470* |
|
L Band (GHz) |
1.0-1.2/1.1-1.3/1.3-1.5/1.5-1.7/1.6-1.8, 1.8-2.2, 1.1-1.6/1.2-1.7* |
|
S Band (GHz) |
2.0-2.2/2.2-2.4/2.3-2.5/2.5-2.7/2.7-2.9/3.4-3.6, 1.6-2.3/1.7-2.4, 1.9-2.7* |
|
C Band (GHz) |
4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0* |
|
|
(Note: RF power, Dimensions, Weight is different) |
|
MIIT (MHz) |
336-344/512-592/566-626/606-678/1420-1520/1430-1444 |
|
Environmental |
|
|
Operation Temperature |
-40℃ ~+80℃ |
|
Protection Level |
IP66, IP67/IP68 Customized |
|
Mechanical |
|
|
Size/Weight |
5.1x3.0x0.6cm/14g (0.25Watts×2 Module, SM-pico) 6.2x4.8x1.0cm/25g (0.5Watts×2 Module, SM-mini) 8.7x5.4x1.0cm/40g (1Watts×2 Module) 8.7x5.4x1.0cm/43g (2Watts×2 Module) |
|
Color |
Black, Iron Gray、Army Green Optional |
|
Installation |
4 Mounting Holes |
|
Interface |
|
|
Basic interface |
2xTNC RF, 1-3xRJ45 Ethernet 100/1000BaseT, WiFi AP,GPS/BD RS232/TTL(UART), Sbus/Bluetooth, 1.2-230.4Kbps, DC Input |
|
Push to talk/Auxiliary interface |
MIC, SP, PTT, GND, RS485/422, USB2.0 OTG |
|
Network Extension Optional |
Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite |
|
Video Extension Optional |
Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 |
|
Link Status Indicator |
Steady red - The network is not connected Blinking red - Starting/not connected to the network Steady green - The network is connected Blinking green - Voice PTT is down |
|
RSSI Link Indicator |
Steady green - The link quality is excellent Steady blue - The link quality is good Steady yellow - The link quality is medium Steady purple - The link quality is slightly worse Steady red - The link quality is poor or link is down |
|
Management Interface/Control Interface |
Web-based network management/GUI, API for secondary development interface/SNMP |
