SMARTmesh Series of Handheld Radio

General

Waveform/SDR Platform

Mobile Network MANET/9363 or 9361+7Z020

MIMO Technology

Space-time coding、Receive Diversity、TX /RX beamforming

Receive Sensitivity

-103dBm@5MHz BW

Channel Bandwidth

1.25/2.5/5/10/20MHz setting

Data Rate

1-70Mbps(10MHz BW) Adaptive, QoS

Modulation Mode

TD-COFDM, BPSK/QPSK/16QAM/64QAM Adaptive(Fixed setting optional)

RF Output Power

(Support TPC, transmisson power control)

0.5Watts x2

1Watts x2

2Watts x2

4Watts x2

Mode

Distributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint,Layer 2 or 3 of Dynamic routing、Multi-hop relay, Star/Line/Network/Hybrid

Single Hop Delay

Average 7mS (20MHz BW)

Encryption

DES, AES128/256, SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine

Anti-Jamming Mode

Manual spectrum scanning channel selection, Full band enhanced intelligent frequency selectting(spectrum awareness)/Full band adaptive frequency hopping/Roaming mode optional

Local/

RemoteManagement

Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic,node distance, GPS/Beidou electronic map, temperature/voltage/jamming Monitoring, software upgrade. Remote silence and wake-up optional

Others

The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second.
There is no limit on the user capacity of a single system (256 nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops). The total bandwidth loss for three hops and above is less than 70%.
Automatic carrier tracking, adapted to a Doppler frequency deviation of ± 6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second).

Bands(70M-6GHz. 2T2R at single band, or 1T2R at dual band selectable/smart change*)

BAND

Frequency range (MHz)

BAND

Frequency range (GHz)

UHF

430-550/570-700/800-950, 225-400/320-470*

S Band

2.0-2.2/2.2-2.5/2.5-2.7/2.7-2.9, 1.6-2.3/1.9-2.7*

L Band

1000-1200/1300-1500/1600-1800/1800-2000, 1200-1700*

C Band

4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0*

MIIT

336-344/512-582/566-626/606-678/1420-1520/1430-1444

Environmental

Operation Temperature

-40℃ ~+80℃

Protection Level

IP66, IP67/IP68 Customized

Mechanical

Size/Weight

19x6.8x3.8cm/769g (with 11.1V/77.7Wh battery Handheld Radio)

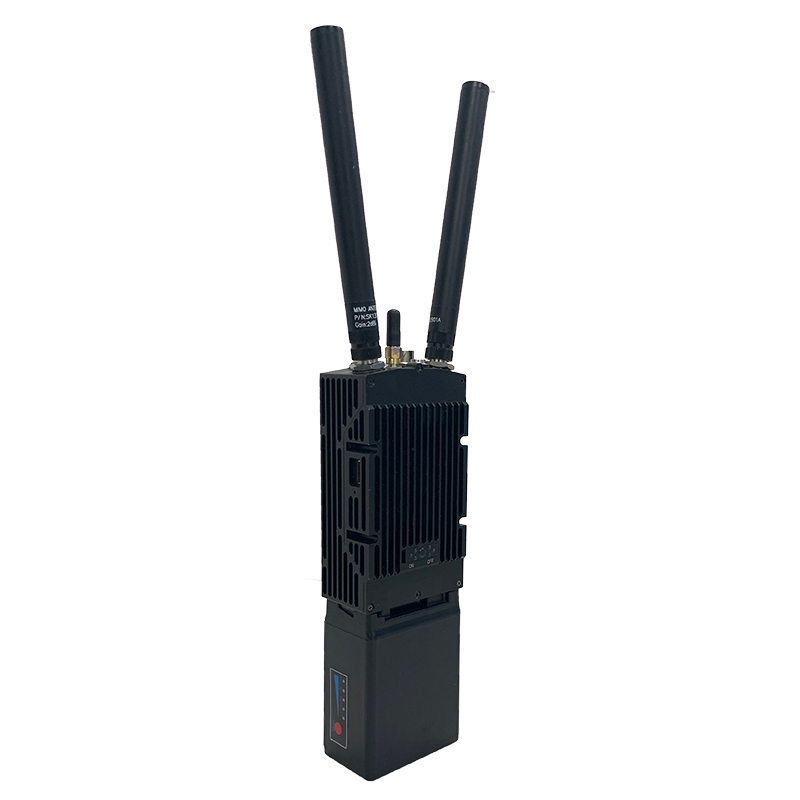

20.5x6.8x3.8cm/0.799kg (with 11.1V/77.7Wh battery WiFi/HDMI Handheld Radio)

20.7x6.9x5.5cm/1.30kg (with 11.1V/77.7Wh battery WiFi/HDMI/5G Handheld Radio)

15.7x6.5x3.2cm/482g (Body Worn)

Color

Black、Lron Gray、Army Green Optional

Installation

4 Mounting Holes

Power

Supply Voltage

9-32VDC(0.5Watts×2)

9-39VDC (1Watts×2)

12-36VDC (2Watts×2/4Watts×2)

Power consumption

Operation 0.3-0.5A/Standby 0.2-0.3A@12V (0.5Watts×2)

Operation 0.5-1A/Standby 0.4-0.6A@12V (1Watts×2)

Operation 1-2A/Standby 0.5-0.7A@12V (2Watts×2 )

Operation 2-4A/Standby 0.5A@12V (4Watts×2 )

Power Selection

Power Supply by Twist-Lock Battery or Main Cable

Batteries

8-10/6-8 hours for 114/77.7Wh

Interface

Basic interface

2xTNC RF, 1-3xRJ45 Ethernet 100/1000BaseT, WiFi AP,GPS/BD RS232/TTL(UART), Sbus/Bluetooth, 1.2-230.4Kbps, DC Input

Push to talk/Auxiliary interface

MIC, SP, PTT, GND, RS485/422, USB2.0 OTG

Network Extension Optional

Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite

Video Extension Optional

Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1

Link Status Indicator

Steady red - The network is not connected

Blinking red - Starting/not connected to the network

Steady green - The network is connected

Blinking green - Voice PTT is down

RSSI Link Indicator

Steady green - The link quality is excellent

Steady Blue - The link quality is good

Steady yellow - The link quality is medium

Steady purple - The link quality is slightly worse

Steady red - The link quality is poor or link is down

Management Interface/Control Interface

Web-based network management/GUI, API for secondary development interface/SNMP
