MimoMesh Series of Vehicular Rack-mounted

General

Waveform/SDR Platform

Mobile network MANET+MIMO/9361+7Z030 or 7Z100 (maximum 40MHz BW)

MIMO Technology

Space-time coding、Receive Diversity、TX /RX beamforming、Spatial multiplexing

Receive Sensitivity

-103dBm@5MHz BW

Channel Bandwidth

2.5/5/10/20MHz setting, 40MHz optional; FDD by dual-antennas with two-frequencys transceiver (Carrier Aggregation) optional

Data Rate

1-100Mbps(20MHz BW)/180Mbps (40MHz BW) Adaptive,QoS

Modulation Mode

TD-COFDM,BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive (Fixed setting optional)

RF Output Power

(Support TPC, transmisson power control)

10Watts×2

20Watts×2

Mode

Distributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint,

Layer 2 or 3 of Dynamic routing、Multi-hop relay, Star/Line/Network/Hybrid

Single Hop Delay

Average 7mS (20MHz BW)

Encryption

DES, AES128/256, SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine

Anti-jamming Mode

Manual spectrum scanning channel selection, Full band enhanced intelligent frequency selectting(spectrum awareness)/Full band adaptive frequency hopping/Roaming mode optional

Local/Remote

Management

Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic,node distance, GPS/Beidou electronic map, temperature/voltage/jamming Monitoring, software upgrade. Remote silence and wake-up optional

Others

The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second. There is no limit on the user capacity of a single system (256 nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops). The total bandwidth loss for three hops and above is less than 70%. Automatic carrier tracking, adapted to a Doppler frequency deviation of ± 6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second).

Bands(70M-6GHz. 2T2R at single band, or 1T2R at dual band selectable/smart change*)

BAND

Frequency range (MHz)

BAND

Frequency range (GHz)

UHF

430-550/570-700/800-950, 225-400/320-470*

S Band

2.0-2.2/2.2-2.5/2.5-2.7/2.7-2.9, 1.6-2.3/1.9-2.7*

L Band

1000-1200/1300-1500/1600-1800/1800-2000,1200-1700*

C Band

4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0*

MIIT

336-344/512-582/566-626/606-678/1420-1520/1430-1444

Environmental

Operation Temperature

-40℃ ~+80℃

Protection Level

IP66, IP67/IP68 Customized

Mechanical

Size/Weight

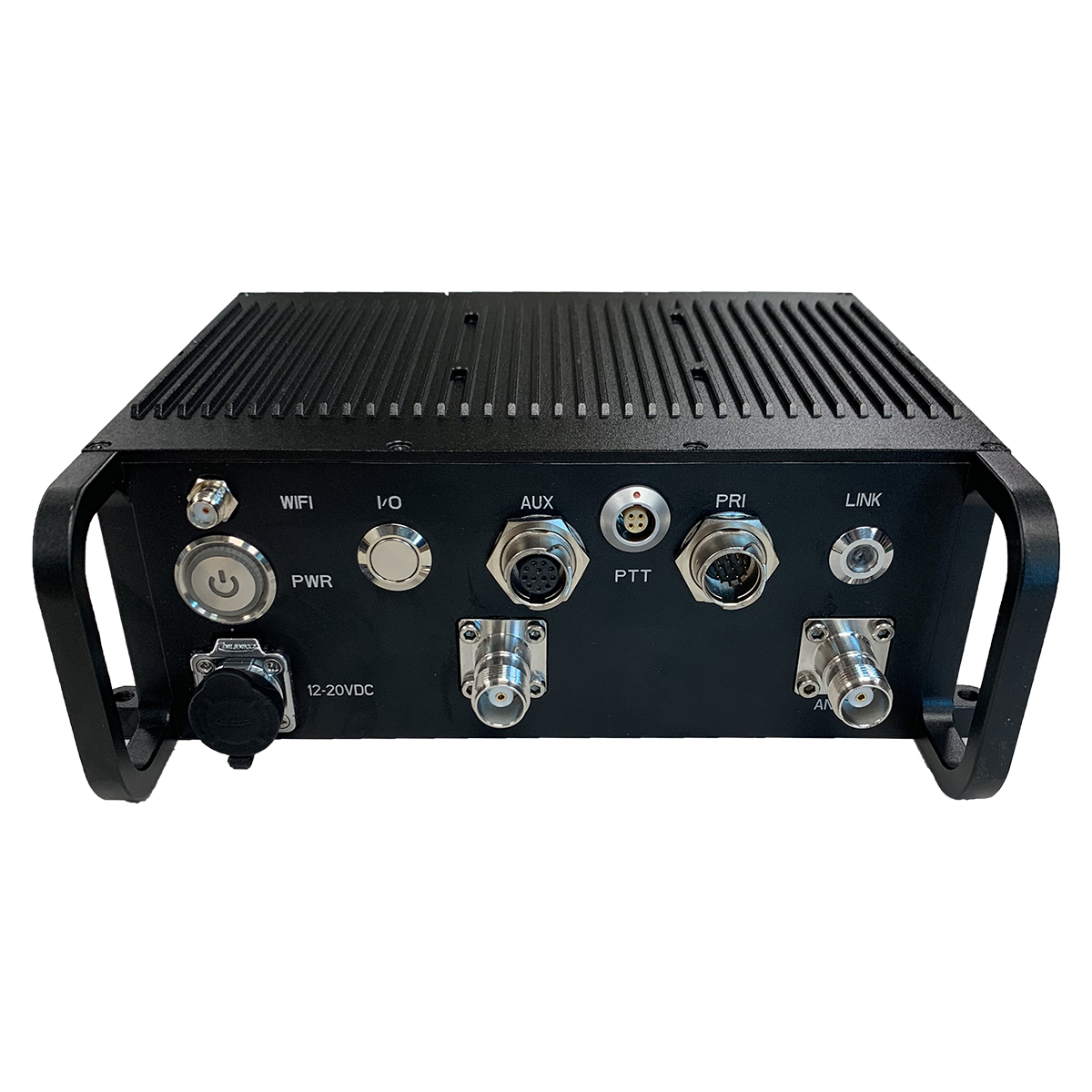

19.1x16.1x6.5cm/1.58kg (10W×2/20W×2)

48.2x42x4.5cm/3.9kg (19-inch 1U Standard Rack Radio)

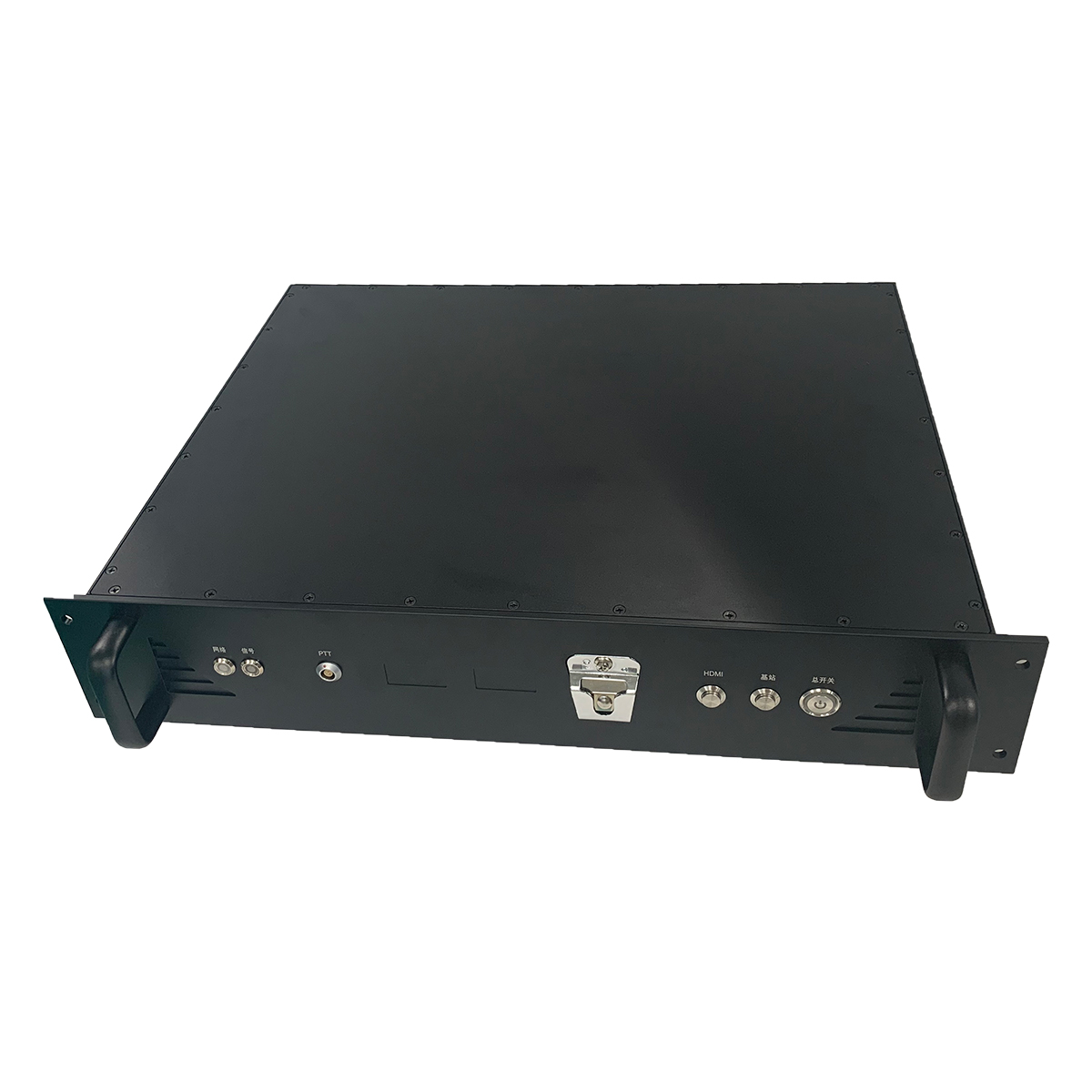

48.2x42x8.8cm/5.4kg (19-inch 2U Standard Rack Radio)

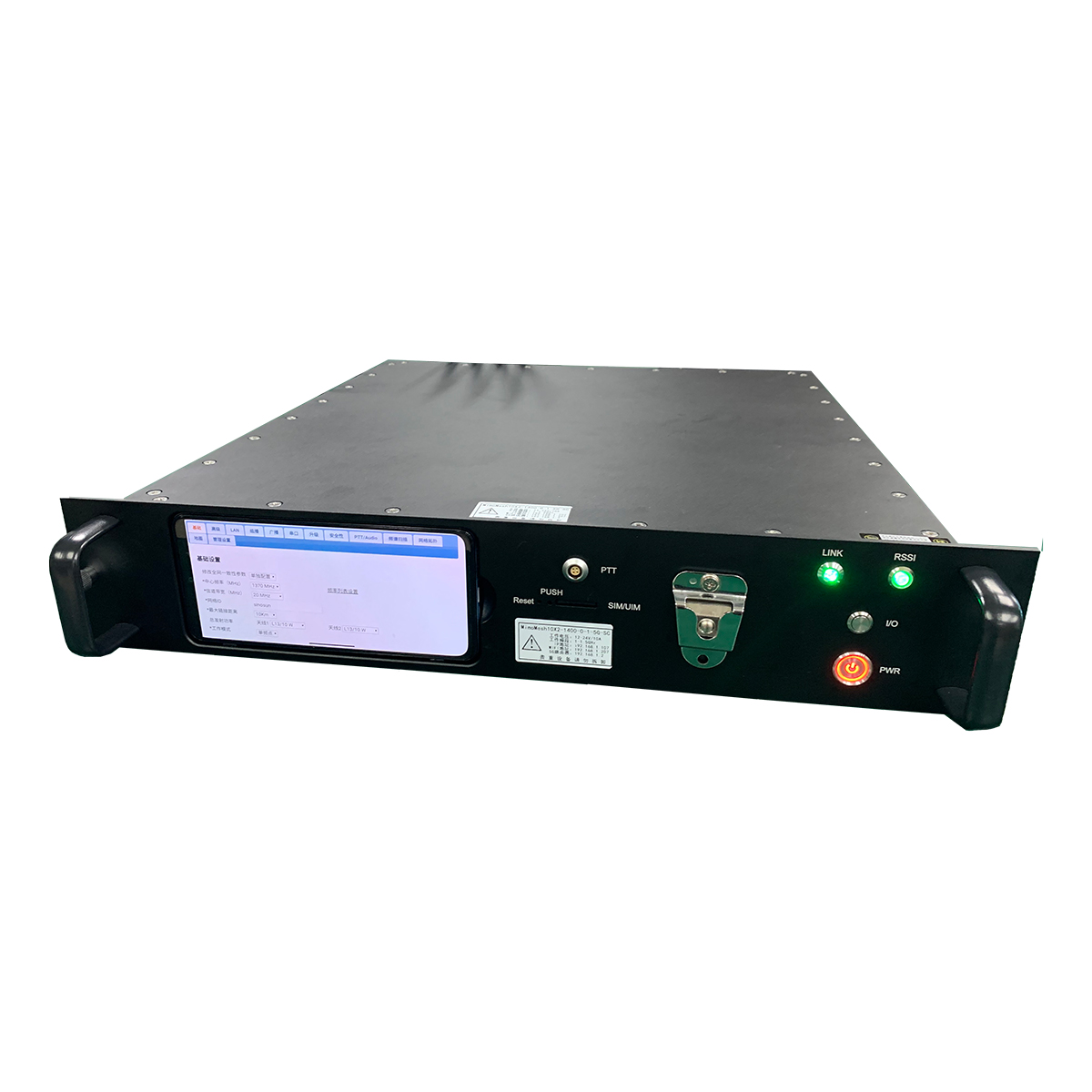

48.2x42x8.8cm/5.9kg (19-inch 2U Display Screen Standard Rack Radio)

Color

Black、Lron Gray、Army Green Optional

Installation

4 Mounting Holes

Power

Supply Voltage

18-24/18-36VDC (10Watts×2/20Watts×2)

Power consumption

Operation 3-6A/Standby 0.7-0.9A@24V (10Watts×2)

Operation 6-7A/Standby 0.7-0.9A@24V (20Watts×2)

Power Selection

Main Cable

Interface

Basic interface

2xTNC RF, 1-3xRJ45 Ethernet 100/1000BaseT, WiFi AP,GPS/BD,RS232/TTL(UART), Sbus/Bluetooth, 1.2-230.4Kbps, DC Input

Push to talk/Auxiliary interface

MIC, SP, PTT, GND, RS485/422, USB2.0 OTG

Network Extension Optional

Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite

Video Extension Optional

Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1

Link Status Indicator

Steady red - The network is not connected

Blinking red - Starting/not connected to the network

Steady green - The network is connected

Blinking green - Voice PTT is down

RSSI Link Indicator

Steady green - The link quality is excellent

Steady Blue - The link quality is good

Steady yellow - The link quality is medium

Steady purple - The link quality is slightly worse

Steady red - The link quality is poor or link is down

Management Interface/Control Interface

Web-based network management/GUI, API for secondary development interface/SNMP
