SMARTmesh Series of Airborne Radio

1. Ip66/Ip67 Waterproof And Refined Airborne Design For Harsh Mesh Networking

2. 1Watts×2/2Watts×2/10Watts×2 Transmission Power, Small Size, Light Weight

3. Rich Interface, Built-In Network Port, Serial Port, High Fidelity (G.722) Intercom Call

4. Long Distance, High Speed, Flexible Networking, Strong Anti-Interference Ability

    Rugged and waterproof, 2Wx2transmit power

    General

    SDR Platform/Waveform

    9363 or 9361+7Z020/Mobile Network MANET

    MIMO Technology

    Space-time coding、Receive Diversity、TX /RX beamforming

    Receive Sensitivity

    -103dBm@5MHz BW

    Channel Bandwidth

    1.25/2.5/5/10/20MHz setting

    Data Rate

    1-70Mbps(10MHz BW) Adaptive, QoS

    Modulation Mode

    TD-COFDM, BPSK/QPSK/16QAM/64QAM Adaptive(Fixed setting optional)

    RF Output Power

    (Support TPC, transmisson power control)

    0.5Watts x2; 1Watts x2; 2Watts x2; 4Watts x2; 5Watts x2; 10Watts x2; 20Watts x2

    Mode

    Distributed centerless Point-to-point/Point-to-multipoint/Multipoint-to-multipoint, Layer 2 or 3 of Dynamic routing、Multi-hop relay, Star/Line/Network/Hybrid

    Single Hop Delay

    Average 7mS (20MHz BW)

    Encryption

    DES, AES128/256, SNOW3G/ZUC optional, Chip/TF card encryption customized or external encryption machine

    Anti-jamming Mode

    Manual spectrum scanning channel selection, Full band enhanced intelligent frequency selectting(spectrum awareness)/Full band adaptive frequency hopping/Roaming mode optional

    Local/Remote

    Management

    Operating frequency, channel bandwidth, network ID, transmit power and other parameter settings, spectrum scanning, real-time display and statistical records of network topology, link field strength signal-to-noise ratio, upload and download traffic,node distance, GPS/Beidou electronic map, temperature/voltage/jamming Monitoring, software upgrade. Remote silence and wake-up optional

    Others

    The startup time is less than 28 seconds, and the network access/update/switchover time is less than 1 second.

    There is no limit on the user capacity of a single system (256 nodes or more) and the number of hops in Mesh networks (Data 15+ hops, voice 10+ hops, video 8+ hops). The total bandwidth loss for three hops and above is less than 70%.

    Automatic carrier tracking, adapted to a Doppler frequency deviation of ± 6kHz frequency offset, supports mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters per second).

    Bands(300M-6GHz customizable.  Same frequency or different frequency of 2T2R at single band, or 1T2R at dual-band selectable/smart change*)

    BAND

    Frequency range (MHz)

    BAND

    Frequency range (GHz)

    UHF

    430-550/570-700/800-950, 225-400/320-470*

    S Band(Note: RF power, Dimensions, Weight are different)

    2.0-2.2/2.2-2.5/2.5-2.7/2.7-2.9/3.4-3.6, 1.6-2.3/1.9-2.7*

    L Band

    1000-1200/1300-1500/1600-1800/1800-2000, 1200-1700*

    C Band(Note: RF power, Dimensions, Weight are different)

    4.4-5.0/5.25-5.85, 4.2-5.2/5.5-6.0*

    MIIT

    336-344/512-582/566-626/606-678/1420-1520/1430-1444

    Environmental

    Operation Temperature

    -40℃ ~+80℃

    Protection Level

    IP66, IP67/IP68 Customized

    Mechanical

    Size/Weight

    11.7x6.2x1.9cm/149g (1Watts×2/2Watts×2 -Lron Gray)

    11.7x6.2x4.2cm/364g (1Watts×2/2Watts×2 -Black)

    11.7x6.2x3.2cm/279g (4Watts×2/5Watts×2-Lron Gray)

    12.7x11.0x3.3cm/635g (10Watts×2/20Watts×2 -Lron Gray)

    6.2x6.3x1.3cm/65g (0.5Watts×2 -Blue, SM-mini)

    Color

    Black、Lron Gray、Army Green Optional

    Installation

    4 Mounting Holes

    Power

    Supply Voltage

    9-32VDC (0.5Watts×2)

    9-39/12-36VDC (1Watts×2/2Watts×2)

    9-24/12-28VDC (4Watts×2/5Watts×2)

    18-32VDC (10Watts×2/20Watts×2)

    Power consumption

    Operation 0.3-0.5A/Standby 0.2-0.3A@12V, 0.5Watts×2

    Operation 1-2A/Standby 0.5-0.7A@12V, 1Watts×2/2Watts×2

    Operation 2-4A/Standby 0.5-0.7A@12V, 4Watts×2/5Watts×2

    Operation 3-6A/Standby 0.7-0.9A@16.8V,10Watts×2

    Operation 6-10A/Standby 0.7-0.9A@20V, 20Watts×2

    Power Selection

    Power Supply by Twist-Lock Battery or Main Cable

    Interface

    Basic interface

    2xTNC RF, 1-3xRJ45 Ethernet 100/1000BaseT, WiFi AP,GPS/BD RS232/TTL(UART), Sbus/Bluetooth, 1.2-230.4Kbps, DC Input

    Push to talk/Auxiliary interface

    MIC, SP, PTT, GND, RS485/422, USB2.0 OTG

    Network Extension Optional

    Public Network Routing/4G LTE, WB-NB integration, Fiber, Satellite

    Video Extension Optional

    Low Delay HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1

    Link Status Indicator

    Steady red - The network is not connected

    Blinking red - Starting/not connected to the network

    Steady green - The network is connected

    Blinking green - Voice PTT is down

    RSSI Link Indicator

    Steady green - The link quality is excellent

    Steady Blue - The link quality is good

    Steady yellow - The link quality is medium

    Steady purple - The link quality is slightly worse

    Steady red - The link quality is poor or link is down

    Management Interface/Control Interface

    Web-based network management/GUI, API for secondary development interface/SNMP

    1 Airborne Radio(Blue), SM-mini

    Airborne Radio 0
    1 Serial 0&1(SM06B-GHS)
    Pin1: GND
    Pin2: RX0
    Pin3: TX0
    Pin4: RX1
    Pin5: TX1
    Pin6: 5V
    2 LAN(SM05B-GHS)
    Pin1: GND
    Pin2: R+
    Pin3: R-
    Pin4: T+
    Pin5: T-
    3 PWR(SM04B-GHS)
    Pin1: GND
    Pin2: GND
    Pin3: +
    Pin4: +

    2 Airborne Radio(Lron Gray)

    Airborne Radio 1Wx2 Gray
    1 RF Channels 1-2 Connectors [SMA Female]
    2 Power/Communication Ports
    3 Link Status Indicator
    Steady red:The network is not connected
    Blinking red:Starting/not connected to the network
    Steady green:The network is connected
    Airborne Radio 4Wx2 Gray
    1 RF Channels 1-2 Connectors [SMA Female]
    2 Power/Communication Ports
    3 Link Status Indicator
    Steady red:The network is not connected
    Blinking red:Starting/not connected to the network
    Steady green:The network is connected

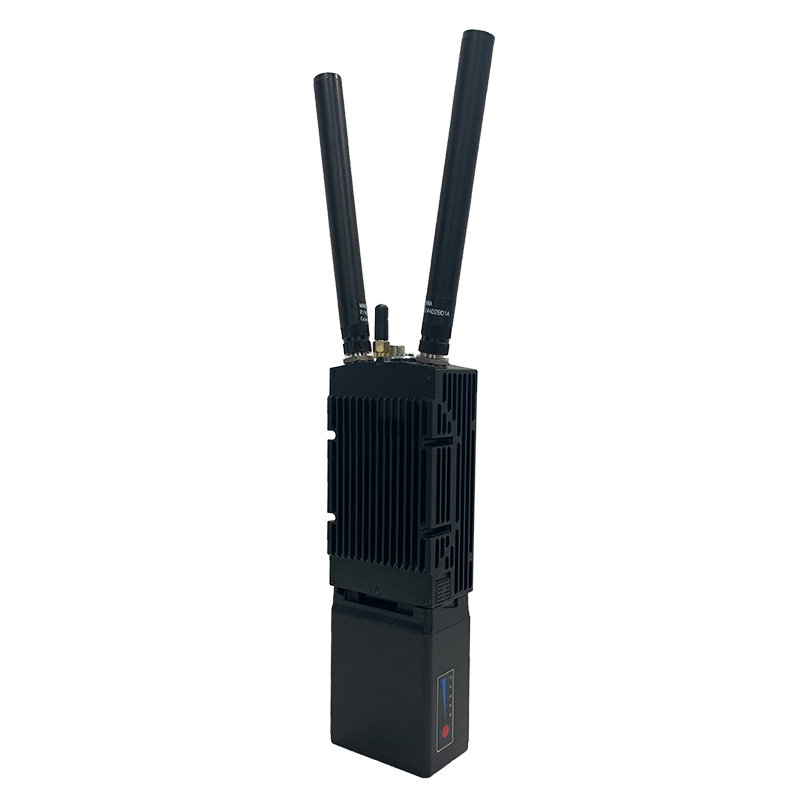

    3 Airborne Radio(Black)
    1 RF Channels 1-2 Connectors [SMA Female]
    2 WiFi Antenna
    3 Power/Communication Ports
    4 Link Status Indicator
    Steady red:The network is not connected
    Blinking red:Starting/not connected to the network
    Steady green:The network is connected
    Blinking green:Voice PTT is down

    19-inch 2U Standard Rack Radio

    Airborne Radio 4Wx2 blackAirborne Radio 2Wx2 black
    1 RF Channels 1-2 Connectors [SMA Female]
    2 WiFi Antenna
    3 Link Status Indicator
    Steady red:The network is not connected
    Blinking red:Starting/not connected to the network
    Steady green:The network is connected
    Blinking green:Voice PTT is down
    4 HDMI Port
    5 Power/Communication Ports

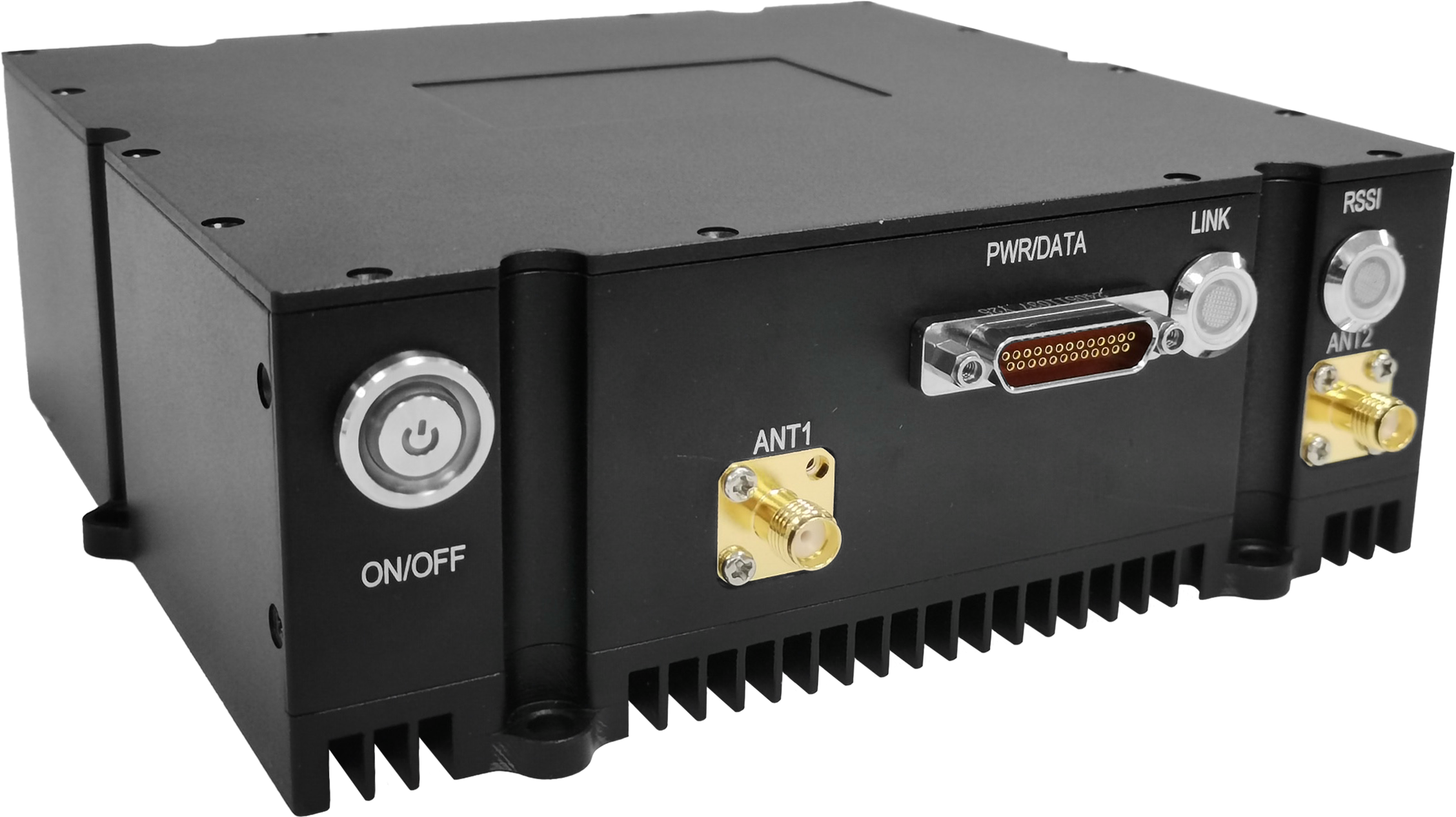

    4 High-power Airborne Radio(Lron Gray)

    Airborne Radio 10Wx2Airborne Radio 20Wx2
    1 RSSI Link Indicator
    Steady green:The link quality is excellent
    Blue Steady:The link quality is good
    Steady yellow:The link quality is medium
    Steady purple:The link quality is slightly worse
    Steady red:The link quality is poor or link is down
    Off:The link is interrupted
    2 Link Status Indicator
    Steady red:The network is not connected
    Blinking red:Starting/not connected to the network
    Steady green:The network is connected
    Blinking green:Voice PTT is down
    3 Power (18-32V), Ethernet, and Serial Port Connector
    4 Radio switch
    5 RF Channels 1-2 Connectors [SMA Female]
